Irrigation Winterization

Step 1 Shut off the water supply to the irrigation system

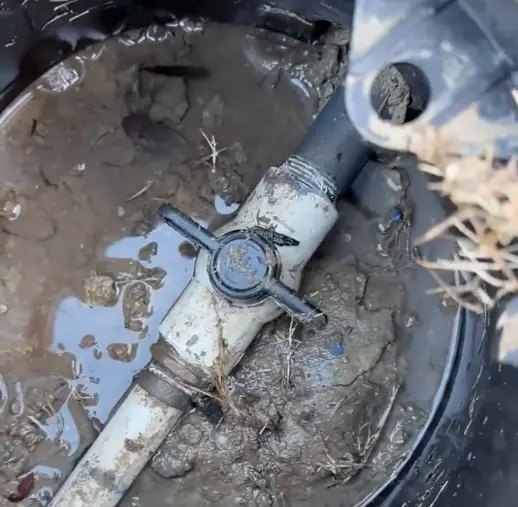

Locate the dedicated irrigation ball valve (usually in the ground box near the main water line or backflow preventer). Turn the valve clockwise (right) until it stops to fully close it.

Step 2 Relieve pressure and drain residual water from the lines

• Go to your irrigation controller / timer (typically in the garage).
• Manually start a spray zone in the front yard — one that is easy to see and observe.
• Let the zone run for 20–30 seconds. Watch the sprinkler heads: water should initially spray, then stop as residual pressure drains. If no water comes out after the initial burst (or it trickles to a stop), the lines are depressurized and mostly drained.

Step 3 Turn off the controller

After running the zone(s), return the controller to the OFF position to prevent any automatic watering during winter.

Step 4 Protect exposed components (recommended for extra protection)

Insulate the in-ground double check valve (backflow preventer) assembly:

• You can purchase wall / fiberglass insulation from a hardware store.
• Wrap it snugly around the valve body, test cocks, and exposed piping. Secure with duct tape if needed.
• Alternatively, wrap a thick towel, old sweatshirt, or blanket around it for temporary protection, then cover with a plastic bag to keep it dry.

Step 5 Secure all irrigation valve boxes

• Ensure all in-ground valve box lids are properly seated and closed.
• Remove any debris, leaves, or standing water from inside the boxes to prevent ice formation or water intrusion.
